13. VPC Networking
Memory Map- Structure and components of Network , Interconnection between them, How they are seccured (NACL/WAF/SecurityGroup etc.)
At the AWS Certified Cloud Practitioner Level, you should know about:
- • VPC, Subnets, Internet Gateways & NAT Gateways
- • Security Groups, Network ACL (NACL), VPC Flow Logs
- • VPC Peering, VPC Endpoints
- • Site to Site VPN & Direct Connect
- • Transit Gateway
VPC is something you should know in depth for the AWS Certified Solutions
Architect Associate & AWS Certified SysOps Administrator.less than 1 or 2 questions at Practitioner exam.
VPC & Subnets Primer
- • VPC – Virtual Private Cloud: private network to deploy your resources (regional resource)
- • Subnets allow you to partition your network inside your VPC (Availability Zone resource)
- • A public subnet is a subnet that is accessible from the internet
- • A private subnet is a subnet that is not accessible from the internet
- • To define access to the internet and between subnets, we use Route Tables.
Internet Gateway & NAT Gateways
- • Internet Gateways helps our VPC instances connect with the internet
- • Public Subnets have a route to the internet gateway.
- • NAT Gateways (AWS-managed) & NAT Instances (self-managed) allow your instances in your Private Subnets to access the internet while remaining private
Network ACL & Security Groups
NACL (Network ACL)
- A firewall which controls traffic from and to subnet
- Can have ALLOW and DENY rules
- Are attached at the Subnet level
- Rules only include IP addresses
Security Groups
• A firewall that controls traffic to and from an ENI / an EC2 Instance
• Can have only ALLOW rules
• Rules include IP addresses and other security groups

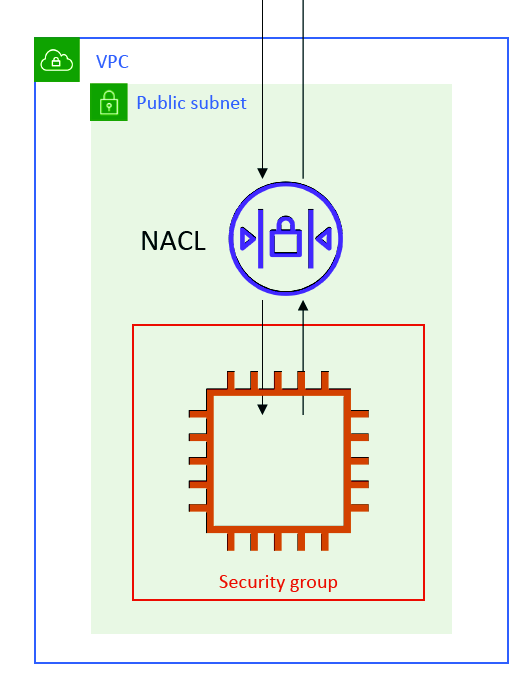

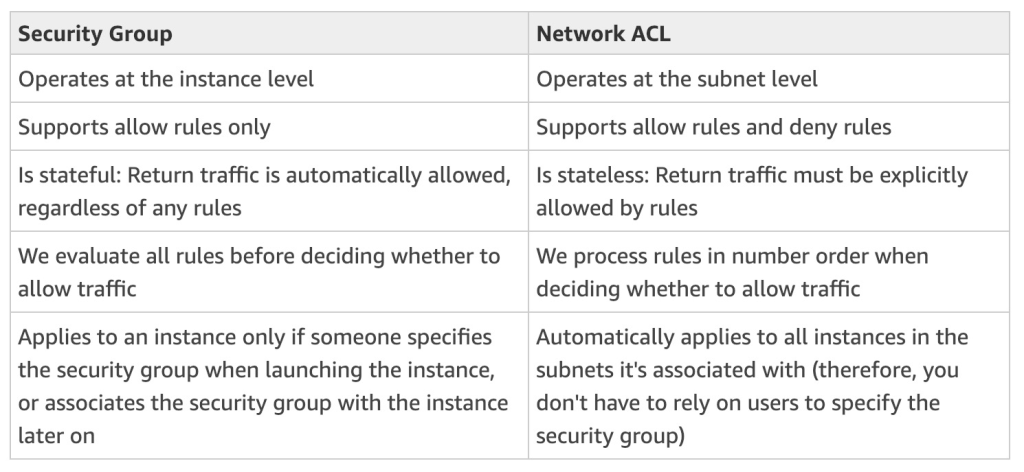

Network ACLs vs Security Groups
Security groups are stateful: This means any changes applied to an incoming rule will be automatically applied to the outgoing rule. e.g. If you allow an incoming port 80, the outgoing port 80 will be automatically opened.
Network ACLs are stateless: This means any changes applied to an incoming rule will not be applied to the outgoing rule. e.g. If you allow an incoming port 80, you would also need to apply the rule for outgoing traffic.
VPC Flow Logs
- • Capture information about IP traffic going into your interfaces:
- • VPC Flow Logs
- • Subnet Flow Logs
- • Elastic Network Interface Flow Logs
- • Helps to monitor & troubleshoot connectivity issues. Example:
- • Subnets to internet
- • Subnets to subnets
- • Internet to subnets
- • Captures network information from AWS managed interfaces too: Elastic
- Load Balancers, ElastiCache, RDS, Aurora, etc…
- • VPC Flow logs data can go to S3 / CloudWatch Logs
VPC Peering
- Connect two VPC, privately using AWS’ network
- • Make them behave as if they were in the same network
- • Must not have overlapping CIDR (IP address range)
- • VPC Peering connection is not transitive (must be established for each VPC that need to communicate with one another)

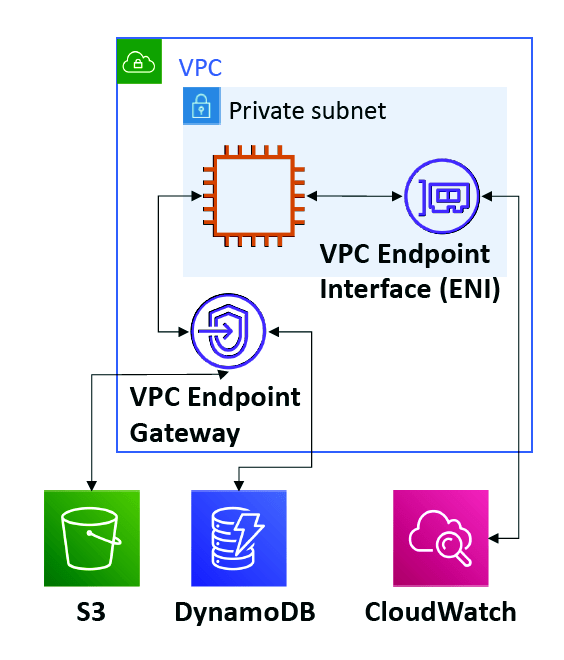

VPC Endpoints
- Endpoints allow you to connect to AWS Services using a private network instead of the public www network
- • This gives you enhanced security and lower latency to access AWS services
- VPC Endpoint Gateway: S3 & DynamoDB
- • VPC Endpoint Interface: the rest
Site to Site VPN & Direct Connect
- • Site to Site VPN
- Connect an on-premises VPN to AWS
- The connection is automatically encrypted
- Goes over the public internet
- • Direct Connect (DX)
- Establish a physical connection between on-premises and AWS
- The connection is private, secure and fast
- Goes over a private network
- Takes at least a month to establish
Site-to-Site VPN
• On-premises: must use a Customer Gateway (CGW)
• AWS: must use a Virtual Private Gateway (VGW
Problem – Network topologies can become complicated
Solution – Transit Gateway!
Transit Gateway
• For having transitive peering between thousands of VPC and on-premises, hub-and spoke (star) connection
• One single Gateway to provide this functionality
• Works with Direct Connect Gateway, VPN connections
